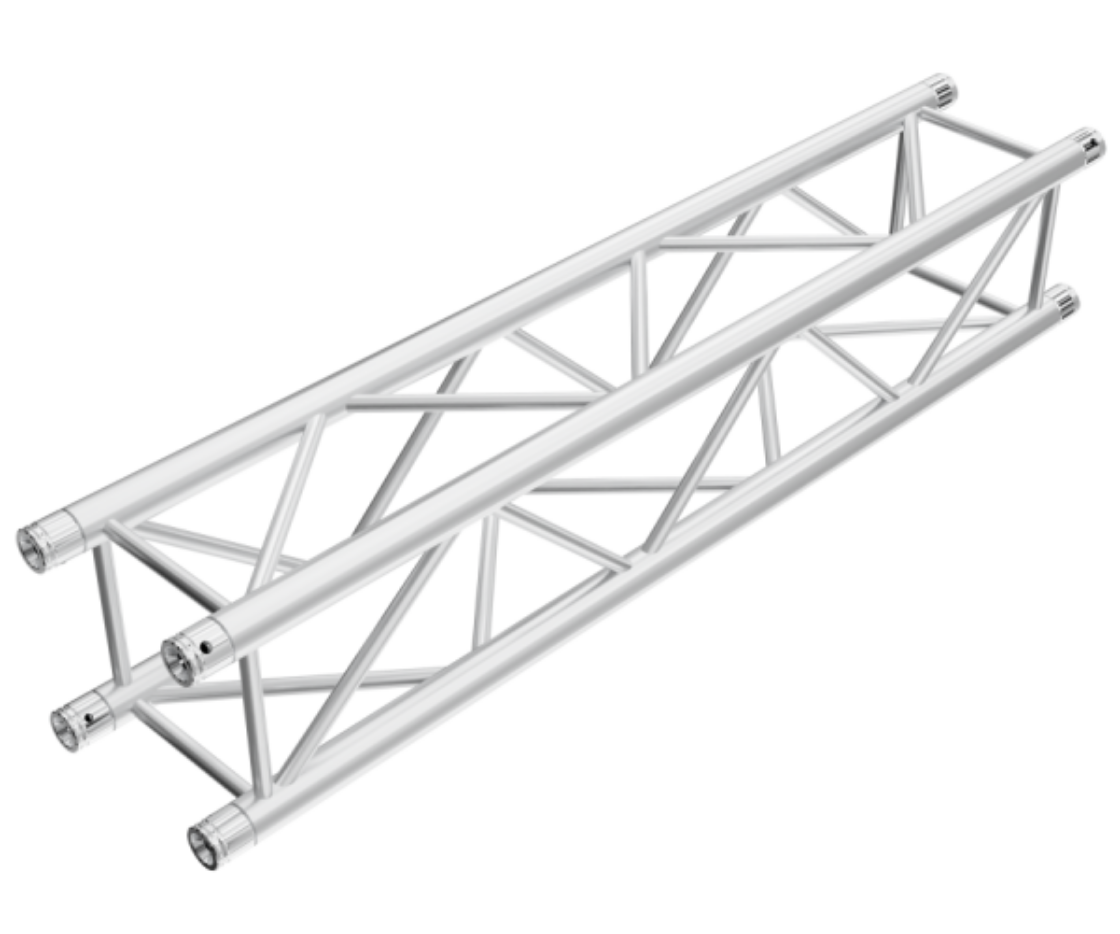

F34 2m (6.56ft) Straight Square Aluminum Truss | 290mm Box Truss | CCS Conical Connection
1 / 2
Truss Systems

F34 2m (6.56ft) Straight Square Aluminum Truss | 290mm Box Truss | CCS Conical Connection

$349.99
In Stock
SKU: TC-TRS-00007

The 2-meter F34 truss system with a 290mm x 290mm square dimension is a robust and versatile aluminum stage truss segment designed for professional event production. Crafted from high-grade aerospace aluminum alloy, this truss offers an optimal balance of lightweight design and maximum load-bearing capacity, making it ideal for rigging lighting, audio, and video equipment in concerts, exhibitions, theater productions, and corporate events. Its 2-meter length perfectly suits custom configurations, allowing for seamless integration into various truss structures like towers, grids, and bridges. Featuring a modular design that adheres to industry-standard F34 dimensions, the truss is compatible with a broad range of accessories such as clamps, motors, and mounting hardware. The 290mm x 290mm square design provides a strong and stable framework, while the precise welds and reinforced corners ensure durability and resistance to deformation under heavy loads. This truss is also anodized to protect against corrosion, extending its lifespan even in outdoor environments.

Package Includes

  • 4× Heavy-Duty Conical Couplers
  • 8× Tapered Quick-Lock Pins
  • 8× R-Clips (Safety Cotter Pins)

All sales are final. No returns or exchanges. View Policy

1

In Stock

Shipping Available

Warranty

Specifications

Weight35 lbs
Length78.74
Width11.42
Height11.42
Dimensions (L×W×H)78.74″ × 11.42″ × 11.42
SKUTC-TRS-00007

Alloy Properties

Tensile Strength310 MPa (45,000 psi)
Yield Strength (0.2%)276 MPa (40,000 psi)
Elongation at Break≥ 12%
Modulus of Elasticity68.9 GPa (10,000 ksi)
Density2.70 g/cm³ (0.0975 lb/in³)
Corrosion ResistanceExcellent — suitable for indoor and outdoor use
WeldabilityExcellent — TIG/MIG weldable with 4043 or 5356 filler rod

Material & Construction

Alloy6061-T6 Aluminum
Truss ProfileF34 Square Box Truss — 290mm × 290mm (11.4" × 11.4")
Main Tube O.D.50mm (2") × 2mm wall thickness
Bracing Tube O.D.25mm (1") × 2mm wall thickness
Connection SystemConical Coupler System (CCS) — quick-lock pin connection
FinishMill Finish (natural aluminum) / Optional powder coat
CertificationTÜV certified
Country of ManufactureChina (with TÜV quality verification)

F34 Load Capacity Chart (UDL)

Maximum allowable uniformly distributed load for a single F34 truss span with 10:1 safety factor.

SpanMax UDL (lbs)Max UDL (kg)Deflection
1m (3.28ft)2,6451,200L/500
2m (6.56ft)1,764800L/400
3m (9.84ft)1,102500L/350
4m (13.12ft)772350L/300
5m (16.40ft)551250L/250
6m (19.69ft)386175L/200
8m (26.25ft)220100L/150
10m (32.81ft)13260L/120

Based on F34 truss (290mm × 290mm, 50mm main chords, 6061-T6) with pinned supports. WLL = UBS / 10.
